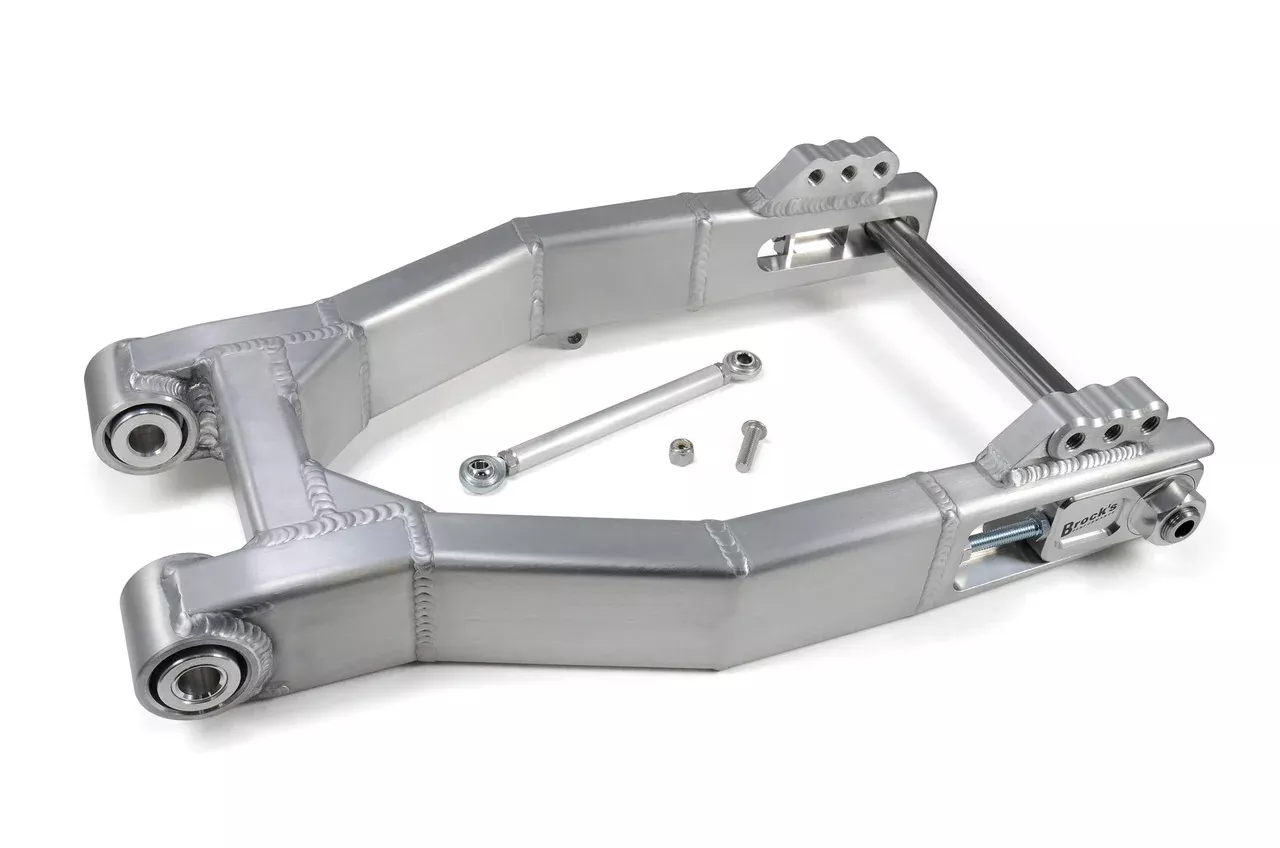

BROCKS ALUMINUM SWINGARM HARLEY DAVIDSON FXR MODELS 1982-2000

Description

brocks performance swingarms for fxr models 1982-2000

• Handcrafted 6061-T6 aluminum extended swingarm
• Proprietary custom extrusion made exclusively for Brock’s Performance
• Extends wheelbase from stock to 3 inches over
• Fits FXR models with a 4.5” transmission housing
• 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”)
• Designed for use in high-power, high-torque applications
• Includes centerless ground 4130 Chromoly axle
  (choose from 3/4”, 25mm, 1”, or 28mm axles)
• Reversible billet aluminum axle adjusters for easy wheel adjustments
• Includes adjustable brake bar for undermount (aftermarket) brake caliper
• PTFE® lined spherical bearings from Worldwide Bearings preinstalled
• Includes bushings to use the OEM pivot shaft
  (choose from 5/8” or 3/4” bushing sets)
• Interior swingarm width measures 10 1/4” at the axle
• The total weight of swingarm, hardware, and axle is 14.32 lb. (6.50 kg)
  (see the ‘Technical’ tab for details)
• Designed, machined, and assembled in the USA
• Burnished raw aluminum finish
• See ‘Technical’ tab for installation information

available in black or natural finish and with or without passenger peg mounts
