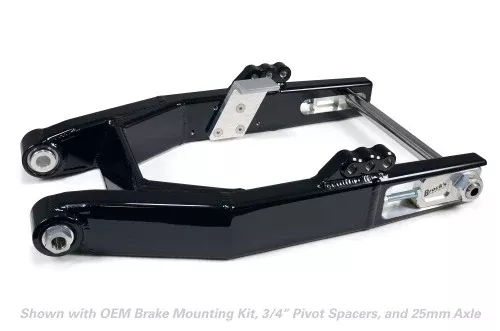

Brock’s Performance Dyna Swingarm 00-17 – Black

Description

Product description

Brock’s Performance Dyna Swingarm 00-17 – Black

If you’re building a Performance Dyna, then we have the perfect swingarm for you!

• Handcrafted 6061-T6 aluminum extended swingarm

• Proprietary custom extrusion made exclusively for Brock’s Performance
• Adjustable wheelbase, from stock location up to 3 inches over

• 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”)

• Designed for use in high-power, high-torque applications

• Includes centerless ground 4130 Chromoly axle
  (choose from 3/4”, 25mm, 1”, or 28mm axles)

• Reversible billet aluminum axle adjusters for easy wheel adjustments

• Select from one of two caliper mounting options:
  Undermount – For Aftermarket Calipers

• OEM – For using the OEM Dyna Caliper and Mount
  (select the correct axle size for your caliper mount)

• PTFE® lined spherical bearings from Worldwide Bearings preinstalled

• Select spacer size for the model year Dyna:
  11/16” – Model Years 2000-2005
  3/4” – Model Years 2006-2017

• Interior swingarm width measures 10 5/8” at the axle

• The total weight of swingarm, hardware, and axle is 14.78 lb. (6.70 kg)
  (see the ‘Technical’ tab for details)

• Designed, machined, and assembled in the USA

• Burnished raw aluminum finish

• See ‘Technical’ tab for installation information

• Click here to view installation information

• Click here to view pivot bolt stack-up engineered drawing

• Overall hub width is critical for proper operation/handling, see ‘Technical’ tab for important information regarding installation
