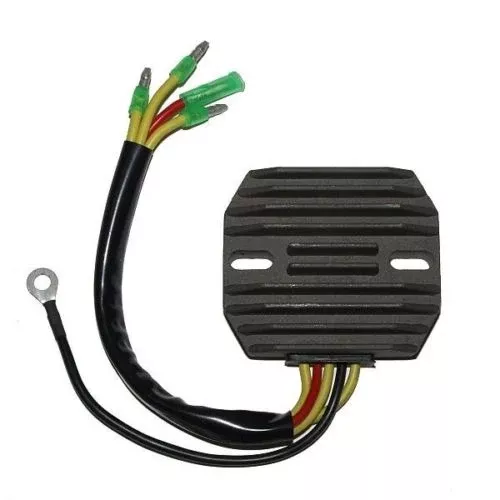

ElectroSport ESR100 Replacement Regulator /Rectifier for Suzuki GS models

Description

Part Number ESR100

• Better than OEM replacement Regulator/Rectifier
• Plug in replacement unit
• Uses our latest regulation circuitry for optimum system voltage
• Manufactured with modern high grade components for optimal performance
• Comes with a Full One Year Warranty

ESR100 is a high quality regulator/rectifier that replaces the not-so-reliable OEM regulator on many older Suzukis. Power handling of our ESR100 regulator/rectfier is superior, and this part is a plug in replacement on many Suzuki models. We have incorporated a heat sink that gets rid of internal heat to the housing quickly and efficiently, making for a very reliable unit. This regulator/rectifier regulates all three phases coming from the stator, unlike the stock unit which only regulates 1 or 2 phases (depending on the model). Three phase regulation is a major step towards reliability on these Suzuki GS models. Like all regulator/rectifiers manufactured by ElectroSport ESR100 also comes with a full one year warranty.

Wire length: 180mm
Input: 3x Yellow
+12V Output: Red
Ground: Black.

Fits
1980-81 Suzuki GS250
1977-78 Suzuki GS400B/C
1979 Suzuki GS425
1980-82 Suzuki GS450T/E/S models
1977-80 Suzuki GS550 8-valve models
1981-82 Suzuki GS550
1976-80 Suzuki GS750 8-valve models
1980-83 Suzuki GS750E / GSX750 (16-valve models)
1979 Suzuki GS850GN
1980-81 Suzuki GS850G
1978-79 Suzuki GS1000
1980-81 Suzuki GS1000G (shaft drive)
1979-80 Suzuki GS1000S (small fairing)
1980-81 Suzuki GS1100E/ET/EZ (GSX1100E)
1983 Suzuki GS1100S Katana (GSX1100 Katana)
