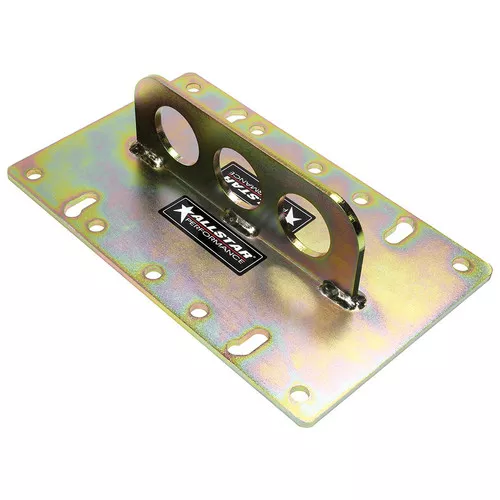

Engine Plate has provisions to fit all LS and LT GM engine blocks and most Holley 4150/4160 and 4500 series, Rochester Quadrajet, Edelbrock and Carter AFB Carburetors. Plate features three lifting points for various chain positioning which allows engine weight to be balanced or offset. An offset position is especially helpful when angling an engine (with transmission attached) in or out of a vehicle. Constructed of 3/16″ thick zinc plated steel.
Alternate Description
ENGINE LIFT PLATE ALL IN ONE
Part Number
ALL10137
Vendor Part Number
ALL10137
UPC Code
848238084931
Package Weight
3.69 lbs
1.67 kg
Package Length
10 in
25.40 cm
Package Width
6.25 in
15.88 cm
Package Height
3 in
7.62 cm
Style
Lift Plate
Engine Mounting Location
Valley | Carburetor Flange
Carburetor Flange
Spread Bore | Square Bore | Dominator
Lift Mounting Style
Hole
Available Lift Mounting Positions
3
Lift Mounting Hole Diameter
3/8 in
Thickness
3/16 in
Material
Steel
Color
Cadmium
Finish
Plated
Quantity
Each
Note
Fits LS and LT GM engine blocks and most Holley 4150/4160 and 4500 series, Rochester Quadrajet, Edelbrock and Carter AFB carburetors.
