JLG Scissor Lift Charger

Sale!
JLG Scissor Lift Charger

JLG Scissor Lift Charger

Original price was: $305.99.Current price is: $220.81.

91 in stock

SKU: OB2425_cabf Category:

Description

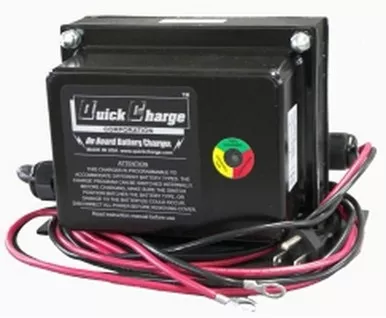

The OB2425 On-board Charger from Quick Charge is a DIRECT replacement for JLG OEM Chargers 0400170 and 0400178 & MORE!No new holes to drill! No changing configurations!

Brand Quick Charge
Model OB2425
Replaces OEM 0400170, 0400178, 2901844, 04002200400238, 0400218, 0400177, 0400204
Chemistry All Lead Acid (Flooded, AGM, GEL)
Dimensions (LxWxH – inches) 9.0 x 6.5 x 6.0
Input Frequency (Hz) 60
Input Voltage (VAC) 120
Maximum Current (Ah, mAh) 25
Operating Temp. Range (oC) 32-120
Output Banks 1
Output Voltage – Charging (V) 28
Output Voltage – Float (V) 27
Ripple (%) No
Voltage (VDC) 24
Warranty 3 Year
Weight (lb) 26

All Quick Charge Units are MADE IN THE USA – MADE TO ORDER. 5-10 business day lead time required.

INCLUDES FREE GROUND SHIPPING!

Compatible with all of the following JLG Model Scissor Lifts:

1532E2, 1932E2, 2032E2 2632E2, 2646E2, 3246E2, 1532E3, 1932E3, 2033E3, 2046E3, 2646E3, 2658E3
