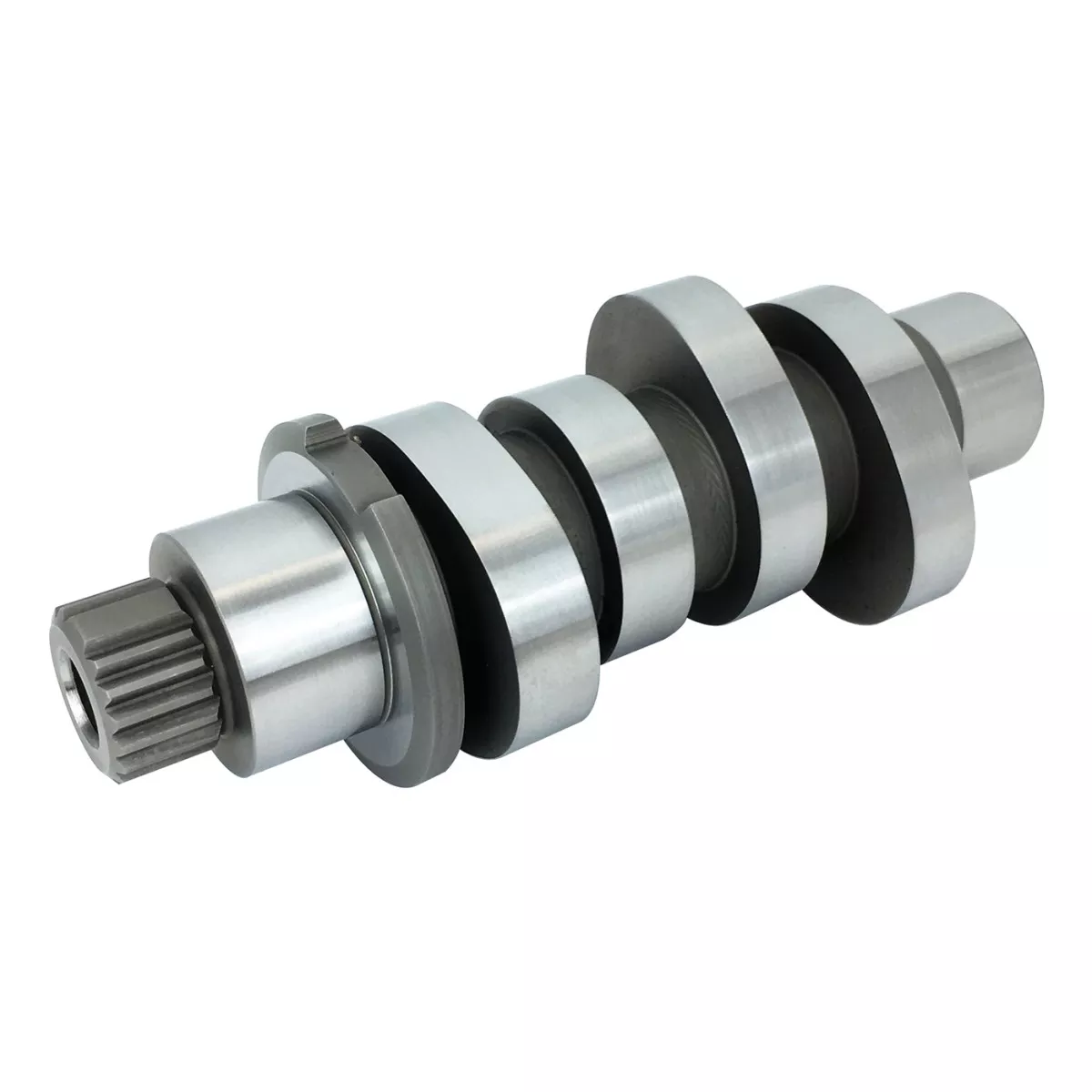

MILWAUKEE EIGHT CAM – 538

Description

538 CAM – Aggressive camshaft with a “nasty” sound. Hotrod bolt in camshaft for Gen2 117″-121″ engines and larger! This camshaft revs up fast and pulls hard. The REAPER 538 grind will further shine in 124″ and larger cubic inch engines with added compression ratio. Go to bolt in for 131/135 kits/engines. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.NOTE: High Lift valve springs are required on stock Gen1 cylinder heads, see FEULING BEEHIVE valve spring kit 1107 (DRAG 0926-2973) or 1108 (DRAG 0926-2974). SE cylinder heads have high lift valvesprings but will need to be verified. Heavy Duty one piece pushrods are also highly recommended see 4087.VVT Models: Requires FEULING camshaft sprocket 1095 (HD 25400103), HD timing cup 18400117, Feuling sprocket retention kit 3042 and Feuling camshaft spacers 8041. Must also be able to turn VVT feature off in ECM.Part 1351 RPM range 2,350 – 5,975. Grind: 538………………Valve LiftOpen CloseDuration @ 50″lift @ TDCLobe CenterlineIntake.53820.5 BTDC 38.5 ABDC239.18099Exhaust.542 48 BBDC18 ATDC 246.157 105Overlap: 38 *Cam specs measured in the engine on the lifter @ 0.050″ using a 1.61 rocker arm ratioDISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLEFeuling® does not recommend tuning beyond stock emissions standards.
