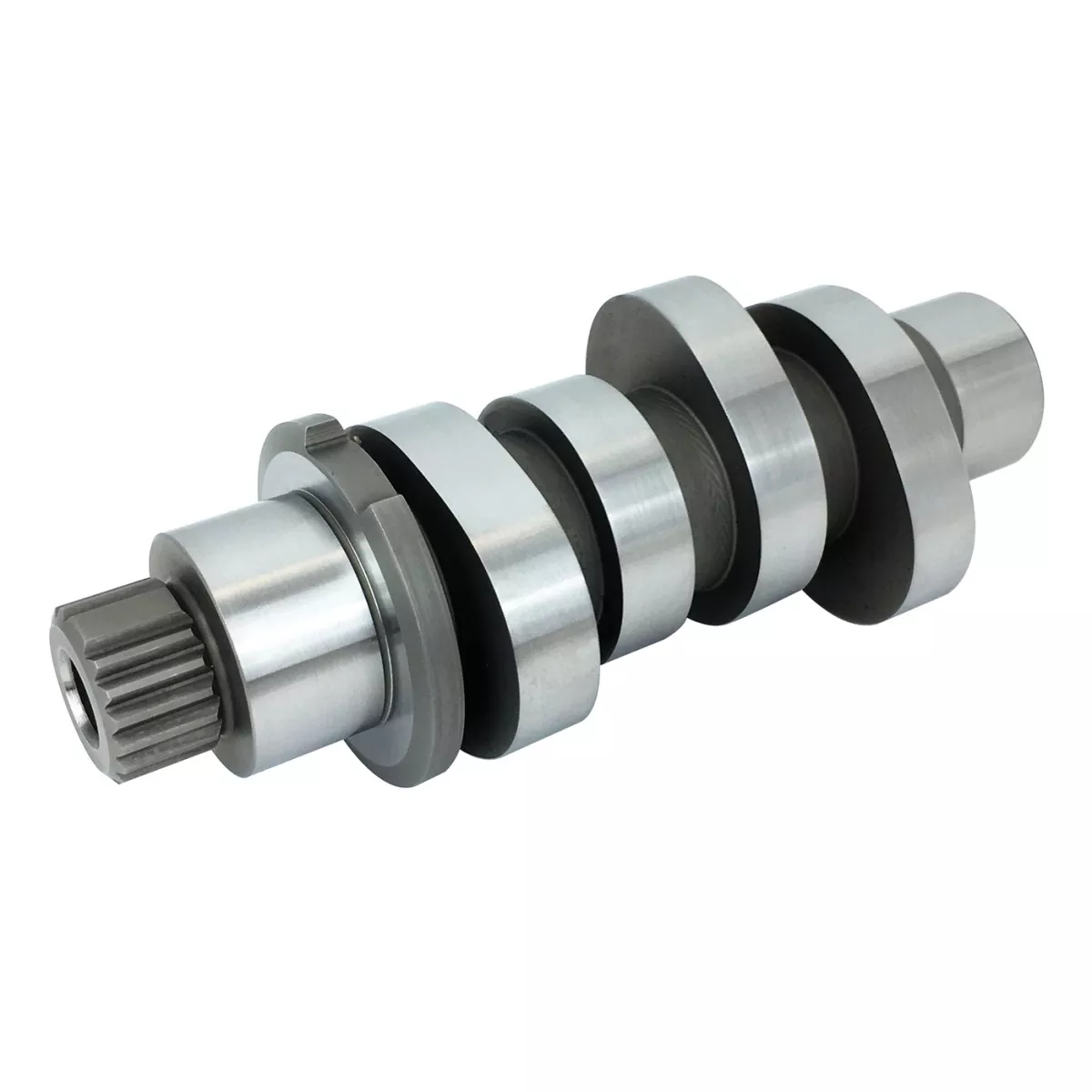

MILWAUKEE EIGHT CAM – 592

Description

592 CAM – ‘The big nasty’ Put your big boy pants on get serious with bore size, ported cylinder heads/intake, high flow valves and throttle body. Aggressive camshaft requiring high lift and higher load valvesprings, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system 7097 or 7099.NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit 1207 (DRAG 0926-3138). Heavy duty pushrods 4087 (Drag 0928-0091). Clearances MUST be checked when installing this cam. SE camplates 25400419 have been found to have clearance issues on high lift camshafts. VVT Models: Requires FEULING camshaft sprocket 1095 (HD 25400103), HD timing cup 18400117, Feuling sprocket retention kit 3042 and Feuling camshaft spacers 8041. Must also be able to turn VVT feature off in ECM.Part 1348 RPM range 2,750 – 6,350. Grind: 592……………Valve LiftOpenCloseDuration @ 50″TDC LiftLobe CenterlineIntake.578 2034 234 18297Exhaust.592 6816 264 146 116Overlap: 36DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLEFeuling® does not recommend tuning beyond stock emissions standards.
