NCY 6-Coil Stator Assembly 5-Wire AC – GY6 125-232cc

Description

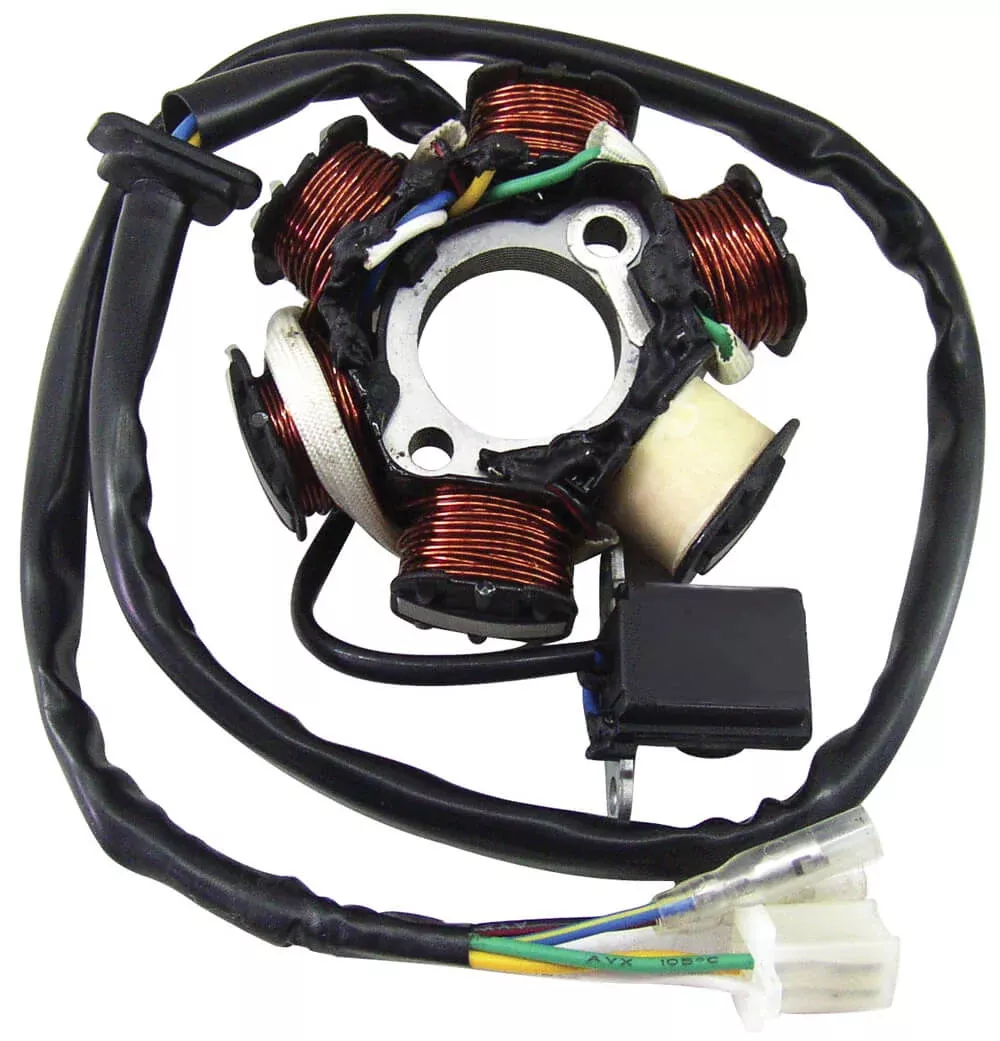

Restore your scooter’s charging system and ignition spark with the NCY 6-Coil Stator Assembly (SKU 0900-1007). Six copper-wound poles on a silver stamped steel lamination plate with two 2-bolt mounting holes, a separate black pickup coil (pulse generator) module, and a 20″ multi-color wire harness (blue/yellow/green/white) terminating in a white 3-pin female connector plus two individual female bullet connectors. Engineered for GY6-based 125cc–232cc AC ignition engines. Manufactured by NCY in Taiwan (ISO 9001 certified).

Before ordering: Confirm your vehicle uses an AC ignition system with a 3-pin female connector and two individual female bullet-connector wires.

Technical Performance Features

• Optimized Charging: 6-pole coil configuration provides stable AC current for battery maintenance and lighting.
• High-Temp Windings: Premium copper wire with high-grade insulation resists stator burn-out during extended or high-heat riding.
• Precision Timing: Pre-installed pickup coil (pulse generator) for accurate ignition timing and smooth idle.
• Plug-and-Play Wiring: Standard GY6 harness — 3-pin female connector + 2 individual female bullet connectors.

Technical Specifications

• SKU: 0900-1007
• Brand: NCY (ISO 9001, Taiwan)
• Configuration: 6 coils / 5 wires
• Ignition Type: AC only
• Mounting: 2-bolt, 41mm spacing, 6mm hole diameter
• Wire Length: 20″ (51cm)
• Connector: White 3-pin female + 2 individual female bullet connectors
• Dimensions (packaged): 5.5″ L x 5.5″ W x 5″ H | Weight: 1.1 lbs

Fitment & Identification Guide

Direct fit for AC-ignition A-Block and B-Block GY6-powered vehicles. If your engine code includes “QM” or “FM” it is compatible.

• Genuine Scooter Co.: Buddy 125, Buddy 150, Buddy 170i, Blur 150
• TaoTao: Powermax 150, Lancer 150, EVO 150, Quantum 150, VIP 150
• Wolf Brand Scooters: Lucky 150, Jet 150, Rugby 150, V-150, Islander 150
• Ice Bear: Heritage 150, Chelsea 150, Vision 150, Pajazzo 150
• Bintelli: Havoc 150, Scorch 150, Beast 150
• Lance / ZNEN: Cali Classic 125/150, Vintage 150, Interceptor 150
• SYM (Sanyang): Fiddle II/III 150, Symphony 150, Jet 4 150
• Lance: PCH 150, Cabo 150
• KYMCO: Movie 150, Super 8 150
• Go-Karts / ATVs: Hammerhead 150, Trailmaster 150, Yerf-Dog 150, American Sportworks
• Performance: Custom Polaris-style RZR 170 clones, Taida 232cc builds

Compatible Engine Codes
