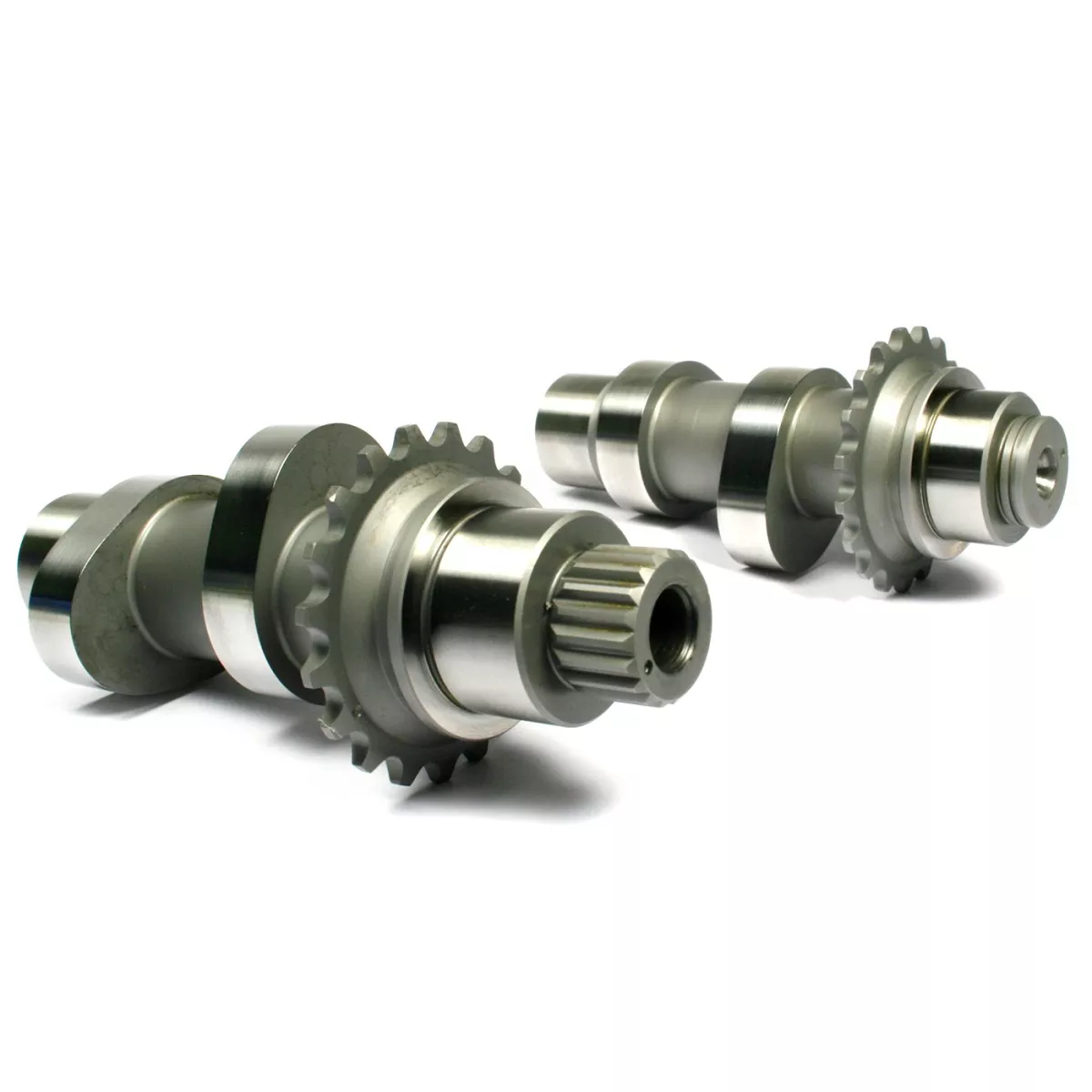

TWIN CAM CAMSHAFTS – 594

Description

594 CAMS – Fierce performing camshaft for an array of engines sizes, large displacement 103″, 110″ & 124″ engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200 – 6,250.) Smaller high revving displacement 95″ style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500 – 6,800). Large displacements respond well to increased compression ratio and smaller displacements will require it. 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch.UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEMConversion camshafts for ’99-’06 Twin Cam engines utilize the ’99-’06 inner cam journals with the ’07-’16 outer cam journals allowing the use of the ’07-’16 camplates, oil pump, hydraulic chain tensioners and chain drive system.*Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the ’07-’17 camplate/oil pumpTwin Cam ‘Conversion’ Chain Drive ’99 – ’06 (Except ’06 Dyna)Part 1016¹ – (525CC Conversion Cam) – 525” Intake, 535” ExhaustPart 1015¹ – (543CC Conversion Cam) – 543” Intake, 553” ExhaustPart 1017¹ – (574CC Conversion Cam) – 574” Intake, 574” ExhaustPart 1019¹ – (594CC Conversion Cam) – 594” Intake, 604” ExhaustPart 1018¹ – (630CC Conversion Cam) – 630” Intake, 630” Exhaust¹Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required, purchased separately – See 8080 & 8083DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLESREQUIRED COMPONENTS FOR CONVERSION CAMSHAFTS – SEE KIT 8080 & 8083 / 7087 & 7088Installing conversion camshafts in ’99-’06 style T/C engines, require use the ’07-’17 style camplate and oil pump along with the following:Qty. 1 FEULING 8061 HD 25675-06 Outer chainQty. 1FEULING 8060 HD 25683-06 Inner chainQty. 1FEULING 1091 HD 25673-06Outer crank sprocket 17 tooth Qty. 1 FEULING 1092 HD 25728-06Outer cam sprocket 34 tooth Qty. 1FEULING 8075 HD 39968-06 Outer hydraulic tensioner unitQty. 1 FEULING 8076 HD 39969-06 Inner hydraulic tensioner unit1 – Bolt kit(2 – 1/4-20 x 3/4″) (2 – 1/4-20 x 1-1/4″) Qty. 1FEULING 8041 Spacer kit Includes the following note installation requires qty. 2 of the following spacers, NOTE: correct spacer thickness is a must for proper sprocket alignment 1- 25729-06 Thrust washer – front cam .100 1- 25731-06 Spacer (.110 for cam alignment; use as required) 1 – 25734-06 Spacer (.120 for cam alignment; use as required) 1 – 25736-06 Spacer (.130 for cam alignment; use as required) 1 – 25737-06 Spacer (.140 for cam alignment; use as required) 1 – 25738-06 Spacer (.150 for cam alignment; use as required)NOTE:’99-’01 engines with Magneti Marelli ignition requires use of Andrews sprocket 216015 in replacement of HD 34 tooth sprocket25728-06 in order to install the new style outer cam chain
