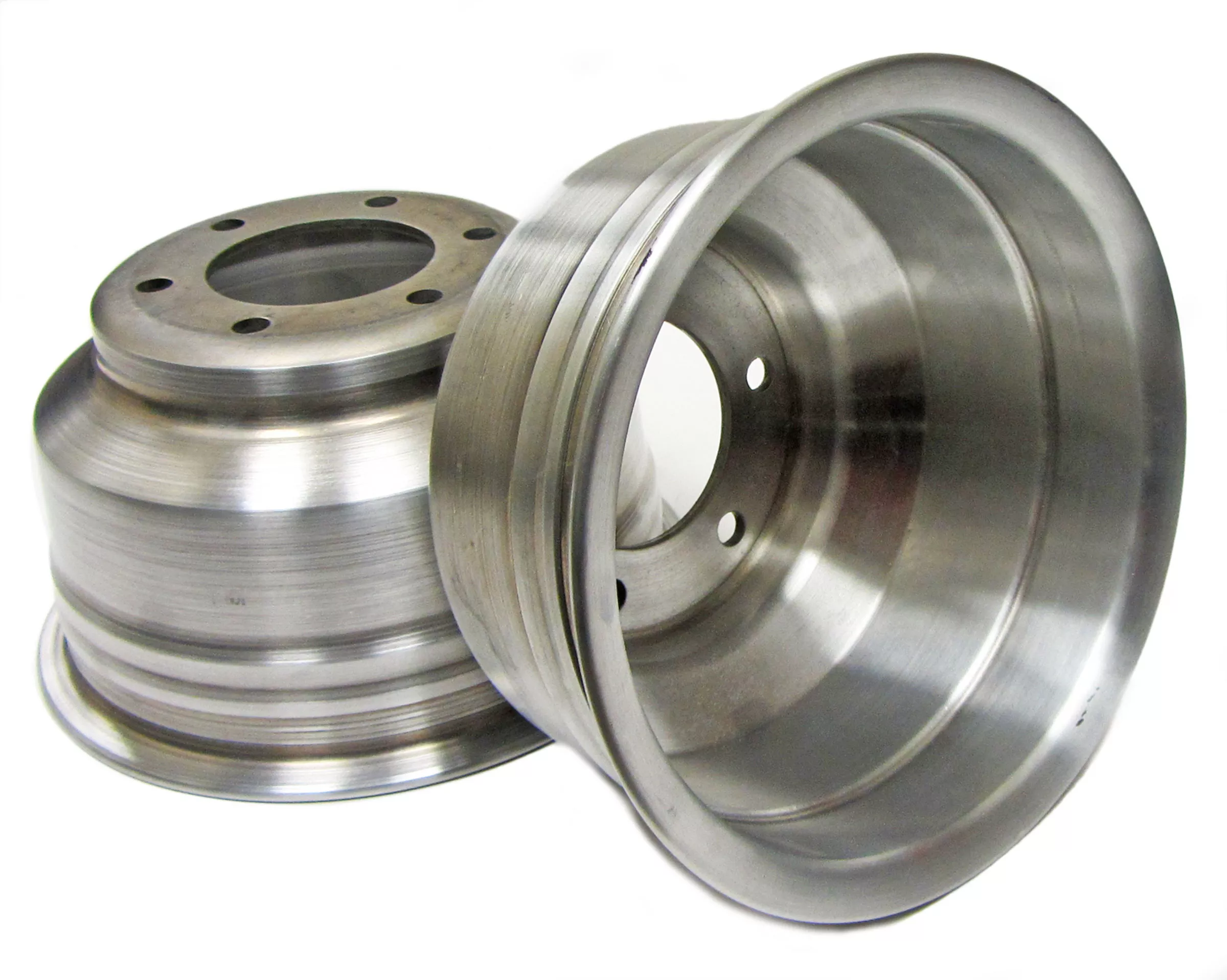

VanK 5″ Rim Half Satin Finish | 2.5″ Bolt Circle

Description

Product Specs:

• Brand: Van-K
• Model: Rim Halves / Split Rims
• Rim Diameter: 5″ Diameter
• Material: Aluminum
• Finish: Satin
• Bolt Patterns: (3) 1/4″ Bolt Holes on a 2-1/2″ Bolt Circle
• Bolt to Bolt Measurement: 2.16″ (55mm)
• Price is per Half…enter the number of halves you want in the quantity box
• Do not have a pre-drilled valve stem hole

Option:

• Width in Dropdown is Bead to Bead (not overall width)

Note:

• NOTE: When using this rim with a rear wheel hub you maybe required to use the 5/16″ bolt hole pattern, instead of the 1/4″. This is due to the location of the pinch bolt on rear hubs, as it will interfere with bolts used to bolt the rim together when lining up with the 1/4″ bolt pattern. However using the 5/16″ bolt hole pattern provides the clearance for the pinch bolt. The rim currently only has 1/4″ bolt holes pre-drilled, so the bolt holes used in conjunction with the wheel hub will need to be reamed out to 5/16″.
• MAY NOT BE EXACTLY AS PICTURED!!!
